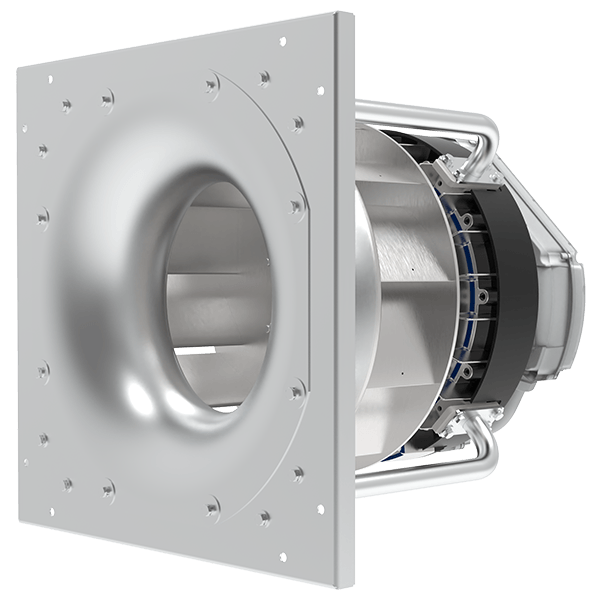

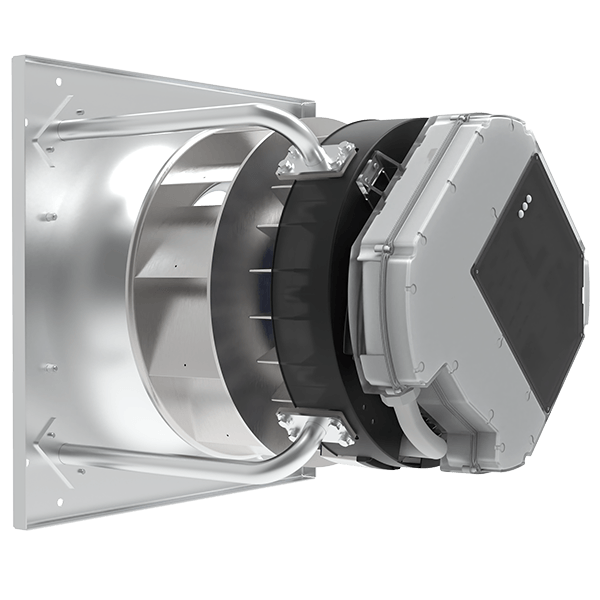

Model PLF: Panel Fan

DESIGNED FOR FAN ARRAY APPLICATIONS

The Model PLF plenum fan is engineered to deliver superior airflow performance while maintaining flexibility. It’s aluminum airfoil wheel design uses less power than traditional plenum fans, improving overall system efficiency without sacrificing output. Extruded aluminum airfoil blades reduce weight, enhance aerodynamics, and support improved acoustic performance.

The fan platform supports the EC motor technology. Integrated speed control is available through EC motors with built-in VFD capability, providing precision control without adding components. Model PLF plenum fans are available in six wheel sizes and partial wheel widths. This design allows airflow performance to be fine-tuned for fan arrays or any application typically served by plenum fans.

PERFORMANCE

  • Airflow Capacity: Up to 22,000 CFM
  • Static Pressure: Up to 12” SPWG

AVAILABILITY

  • Sizes: 16” (160), 18” (180), 20” (200), 22” (220), 24” (240), 27” (270)
  • Widths: 75%, 100%

LIGHTWEIGHT ALUMINUM AIRFOIL WHEEL

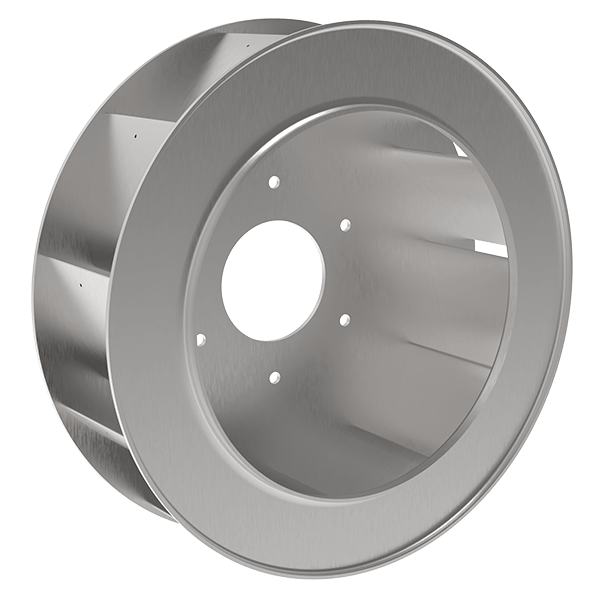

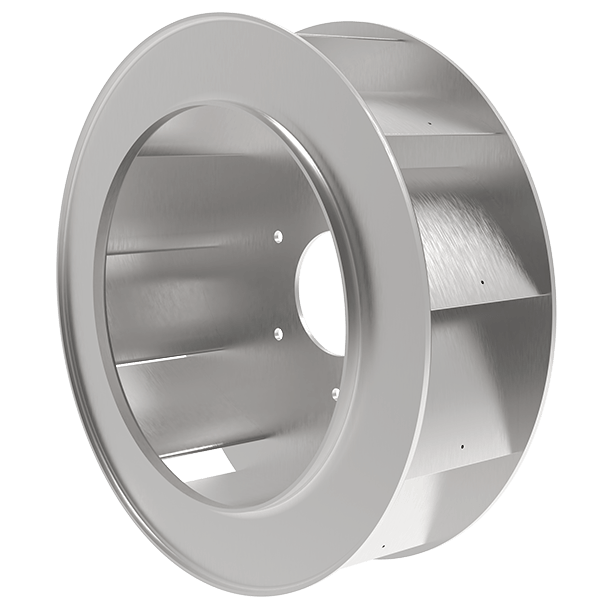

When performance and efficiency matter, count on Cincinnati Fan’s EV aluminum airfoil wheel (Series CDAF) — engineered to deliver superior airflow performance in commercial plenum fan applications. The EV wheel’s advanced design uses eleven precision aluminum airfoil blades to improve aerodynamic control, optimize airflow, and support higher system efficiency — all in a lightweight aluminum construction ideal for commercial air handling systems.

FIND A REP

  • ADVANTAGES
  • DESIGN/CONSTRUCTION
  • APPLICATIONS
  • REsources
  • The airfoil bladed wheel delivers uniform airflow and improved aerodynamic efficiency for performance stability.
  • The aluminum wheel construction reduces weight and supports long-term durability.
  • Designed for energy efficient operation, the high efficiency airfoil wheel uses less power than traditional plenum fans.
  • Motors with built-in VFD capability provide integrated speed control, allowing fan output to adjust to system demand without external controls.
  • The extruded aluminum airfoil blades are lightweight, durable, and corrosion resistant.
  • Wheel designed with 11-blades for increased airflow control and expanded operating stability.
  • Standard NEMA frame motor mounting allows broad compatibility and ease of integration with various motor sizes.
  • Fan platform designed for EC motors.
  • Air Handling Unit (AHU)
  • Fan Arrays
  • Data Centers
  • Light Industrial Applications
  • Healthcare Facilities
  • Laboratories
  • Commercial Buildings
